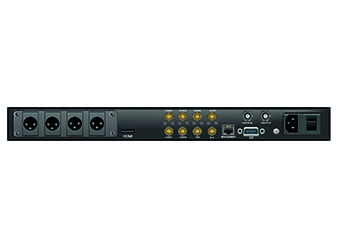

El UMH160R es un poderoso y económico decodificador a nivel de broadcast. Éste soporta recepción de señales, descifrado multi-canal, multiplexación, inserción externa de tablas/datos, transcodificación y transmodulación. También soporta decodificación de programas MPEG2/MPEG4 SD/HD con dos canales de audio. Con una interfaz remota, de manejo por Internet, es ideal para la distribución avanzada de contenido, conversión de señales a tiempo real y transmisión para cualquier sistema de cabecera.
Recepción y Entrada
Procesamiento de Datos
Salida
Administración
| Marca |
|---|
DVB-S/S2 Input |
|
|
2XRF input per unit: |
|
|
Constellation: |
QPSK, 8 PSK |
Symbol Rate |
|
|
DVB-S: |
1~45 Msps (QPSK: 1/2,2/3,3/4,5/6,7/8), |
|
DVB-S2: |
1~31.5 Msps (QPSK: 1/2,3/5,2/3,3/4,5/6,8/9,9/10; |
|
Input Frequency: |
950~2150 MHz |
|
Signal Level: |
Aporox -65~-25 dBm |
|
Acquisition Range: |
+/- 5 MHz |
|
Tuner Step Size: |
100 KHz |
|
Return Loss: |
>10 dB |
|
LNB Power: |
Vertical: 11.5V~14.0V, Horizontal: 16.0V~19.0V, |
|
22K Switch: |
on/off |
|
|
|
QAM RF Input |
|
|
Input Frequency Range: |
48 -862 MHz |
|
RF Channel: |
2(6/7/8 MHz) per unit |
|
QAM Modulation Mode: |
16/32/64/128/256 QAM |
|
QAM Type: |
ITU-T J.83 Annex A/ C, Annex B (64/256QAM) |
|
Symbol Rate: |
1.0~6.9 MBauds |
|
RF input bit-rate: |
up to 55 Mbps |
|
|
|
DVB-T/ISDB-T Input |
|
|
Input Frequency Range: |
48 -862 MHz |
|
RF Channel: |
2 (6/7/8 MHz) per unit |
|
QAM Modulation Mode: |
16/64 QAM |
|
|
|
DVB De-scrambling |
|
|
DVB-CI Interfaces: |
up to 2 independent CI slots (EN50221) |
|
CA Method: |
Multicrypt/Simulcrypt, Hot Plug |
|
CAS: |
Irdeto, Conax, Viacess, Nagravision, Novel SuperTV, Verimatrix, CTI, Dvcrypt&other DVB-simulcrypt CAS |
|
|
|
GBE IP Interface |
|
|
Interface: |
1 x 1000 Mbps per port |
|
IP Encapsulation: |
MPEG TS over UDP/RTP |
|
MPEG TS: |
MPTS and SPTS |
|
I/O Processing: |
Up to 12 Sockets, max at 72 Mbps per socket |
|
Addressing: |
Unicast and Multicast |
|
Management: |
IGMPv1, IGMPv2, IGMPv3 |
|
Forward Error Correction: |
ProMPEG |
|
|
|
DVB ASI interface |
|
|
Interface: |
4 BNC connectors (2 ASI inputs), 75Ω |
|
MPEG Format: |
188/204Byte per TS |
|
I/O Processing: |
1 MPTS/SPTS per port, up to 120 Mbps per port |
|
|
|
Re-multiplexing |
|
|
PID: |
Re-mapping and Filtering |
|
MPTS Output Synchronization: |
|
|
Routing: |
Any Input to Any Output |
|
Redundancy: |
Input Service Redundancy & IP Port Redundancy |
|
|
|
Management |
|
|
Interface: |
100BaseTX, RJ45 |
|
NMS: |
Wellav Digital Service Manager |
|
Web-based Management (future feature) |
|
|
Support SNMP: |
|
|
|
|
Physical & Environment |
|
|
Input Voltage: |
90 - 260 VAC |
|
Power Consumption: |
Approx 40 W |
|
Rack Space: |
1 RU |
|
Dimension (WxHxD): |
480mm x 44mm x 440mm |
|
Operating Temperature: |
0℃ to 50℃ |
|
Storage Temperature: |
-40℃ to 65℃ |
|
Relative Operating Humidity: |
<95% |
